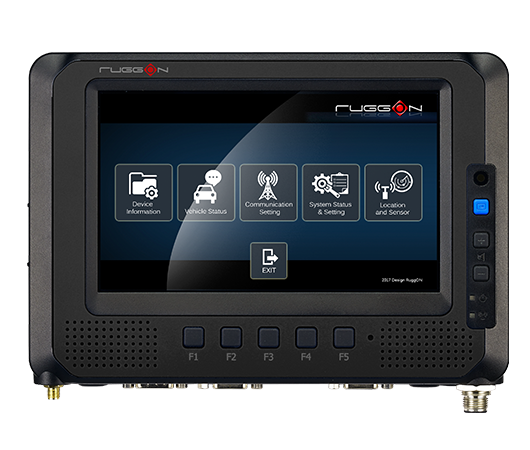

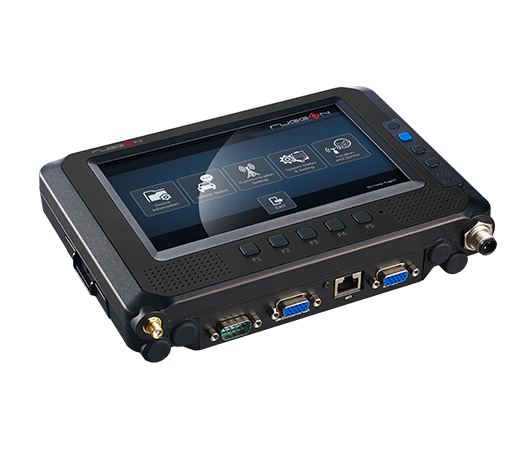

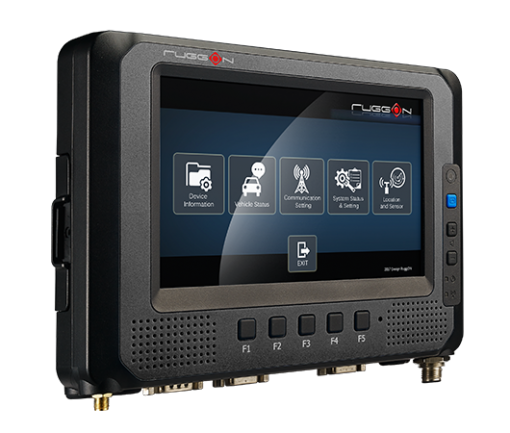

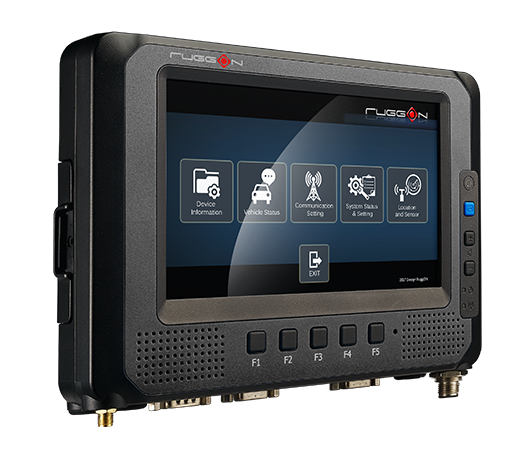

MT7000 7″ Mobile Data Terminal

Combining friendly and intuitive interface with vehicle connectivity and power, MT7000 is a purpose-built device for in-vehicle application.

Clear selection
SKU: N/A Category:
Want create site? Find Free WordPress Themes and plugins.
  • Bright 7-inch PCT touch display with intuitive interface
  • Health readiness via SAE J1939
  • GNSS with dead reckoning function
  • Smart power management with ignition sense and backup battery
  • Vehicle-grade power protection

Easy identify , tracking and IoT enabled

MT7000 is reserved with integrated NFC/RFID design which enables easy to identify ability and able to connect with various IoT devices. The Multi-protocol HF RFID Tag support: ISO15693 and ISO14443A/B speed up fleets in border crossing and driver ID verification processes.

Smart power management

Outfitted with the upmost efficient power management, MT7000 is protected from sudden surges, noise filtering, overvoltage/ lower voltage, overcurrent, and other car power hazards that may damage the in-vehicle hardware system. MT7000’s UPS (uninterruptable power supply) battery supports additional time to save tracking data, or shut down properly during power loss.

Seamless connectivity for smoother operations

MT7000 offers the best in-class connectivity with Wi-Fi 802.11 a/b/g/n/ac, GPRS/HSPA+/LTE, and Bluetooth V4.0 class2. The concurrent multi-GNSS reception of GPS/QZSS, GLONASS and BeiDou offers precise positioning. The supported dead-reckoning function also ensures continuous tracking even in tunnels, canyons, and overpasses.

User friendly interface

Utilizing DashON management software, the device information is easily accessible and configurable including, communication setting, power management and IO setting. For your added benefit, a complete SDK is also offered to make it easy for you to customize and extend the device with software apps.

Did you find apk for android? You can find new Free Android Games and apps.
CPU

Intel® Atom™ E3815 1.46 GHz, Intel® Atom™ E3826 1.46 GHz

Memory

2 GB DDR3L SODIMM

Storage

mSATA SSD
Micro SD slot

Display

7-inch WXGA TFT LCD (1024 x 600), 500 nits support auto-dimming
Capacitive multi touch (PCT)

Operating System

Windows 10 IoT Enterprise, Android 4.4

Communication

(Optional) Wi-Fi 802.11 a/b/g/n/ac
(Optional) Bluetooth V4.0 Class 2
(Optional) 4G LTE / GPRS / HSPA+
(Optional) GNSS (GPS / QZSS or GLONASS or BeiDou)
(Optional) Dead-reckoning support
(Optional) NFC / RFID

Function Buttons

Programmable button x 5
Volume adjustment x 2
System on / off x 1

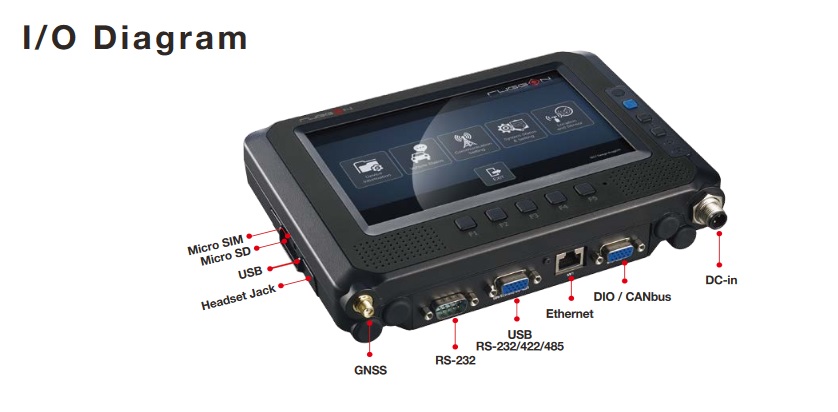

I/O Interfaces

RS-232 with power supported x 1, RS-232/422/485 x 1
USB 3.0 x 1, USB 2.0 x 1
Dual Micro SIM slot x 1
Gigabit Ethernet (RJ45) x 1
CAN bus (SAE J1939 supported) x 1
Digital I/O x 4
Headset jack x 1

Power management

9~36 VDC input
Vehicle power protection (ISO7637-2)
Ignition sense with time delay shut down
Remote power on, wake on SMS / RTC
UPS backup battery

Rugged Features

IEC 60529 IP65 (Except bottom side I/O)
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth

Environmental

Operating temperature : -30°C to 60°C
Storage temperature : -30° C to 70° C
Humidity 5-95%

Dimensions / Weight

Dimensions (W x H x D) : 220 x 152 x 40 (mm)
Weight : 1.25 kg

Certifications

CE
FCC
eMark

Software

DashON

IN-box Accessories

Power cable
GPS / Glonass antenna
DB15 to USB cable
DB15 to DIO / CAN bus cable assemblies
