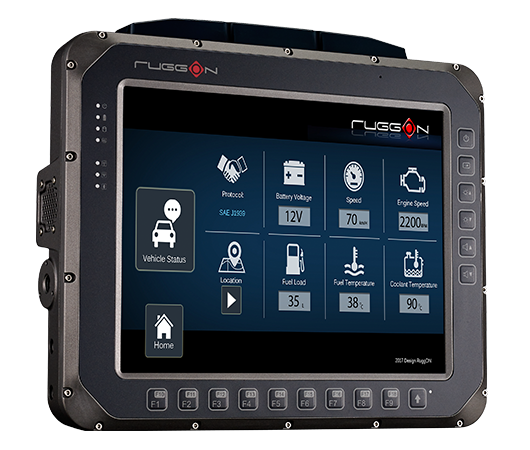

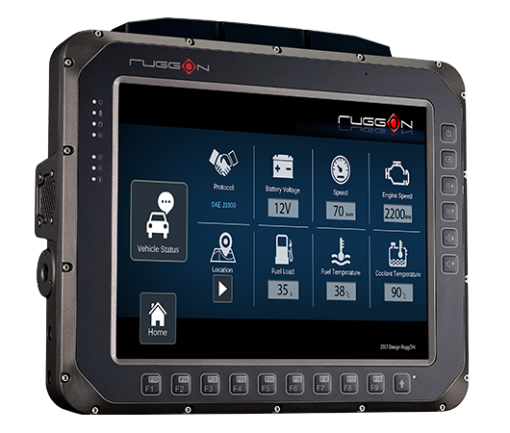

VX-601 – 12.1” Rugged In-Vehicle Terminal

VX-601 gives the finest balance of toughness and performance for intralogistics and cold chain logistics.



Clear selection
SKU: N/A Category:
Want create site? Find Free WordPress Themes and plugins.
  • The high brightness display supports auto-dimming and defroster
  • Extremely sturdy design to conquer tough task
  • Health readiness via SAE J1939/ OBDII
  • Rich I/O design for maximum utilization
  • Wide power input to fulfill diversified applications
  • Smart power management with ignition sense and backup battery

Underline the visibility of outdoor

The ultra-bright 1200 nits display dims automatically in low light to save power and avoid eyestrain. Even in direct sunlight, a special anti-reflection layer is available to help keep the screen readable.

Ready for challenge

The VX-601, 12.1″ vehicle mount computer, is built from the ground up for durability and reliability, with IP66 (IEC 60529), MIL-STD-810G and IEC 60721-3-5 Class 5M3 compliance. This impressive durability with the optional defroster function makes handling easier and more adaptable to work in challenging conditions. On demand, the screen is also operable with gloves.

DashON - Click to activate

DashON is the RuggON management software that gives you access to a wide range of configuration settings via user-friendly interface. Besides device information, DashON features vehicle status, communication setting, system status setting , power management and GPS configuration setting. The corresponding SDK is also provided for your application development.

Maximum efficiency

Extensive I/O features and dedicated function buttons come together for field operations, which not only ensure an incomparable output, but also maximum efficiency. Waterproofed external connectors are available for the most challenging conditions.

Did you find apk for android? You can find new Free Android Games and apps.
CPU

Intel® Core™ i5-6300U 2.4 GHz, Intel® Celeron® 3955U 2 GHz

Memory

4 GB DDR3L, 8 GB DDR3L

Storage

M.2 2280 SSD
SD Slot

Display

12.1-inch XGA TFT LCD with LED backlight (1024 x 768)
(Optional) defroster function

Touch

5-wire Resistive Touch, Projected Capacitive Touchscreen (PCT)

Brightness

700 nits brightness with auto-dimming, 1200 nits brightness with auto-dimming

Operating System

Windows 10 IoT Enterprise, Windows 7 Professional Embedded

Communication

Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 Class 2
(Optional) 4G LTE / GPRS / HSPA+
(Optional) GNSS (GPS / QZSS or GLONASS)

Function Buttons

Programmable button x 9
Brightness adjustment x 2
Volume adjustment x 2
Display on / off x 1
(Optional) Defrost / Defog button x 1

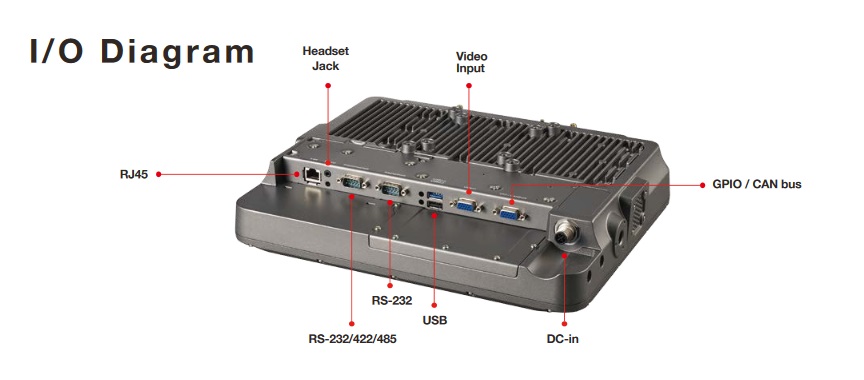

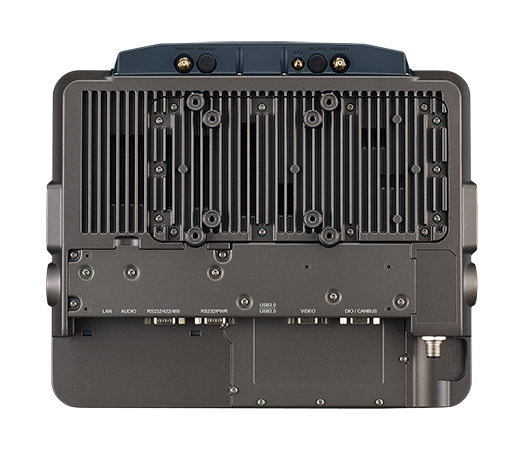

I/O Interfaces

RS-232 with power supported x 1
RS-232/422/485 x 1
(Option) USB 3.0 / 2.0 x 1, USB 2.0 x 1
Gigabit RJ45 x 1
CAN bus (SAE J1939 / OBD II supported) x 1
GPIO x 2
Audio headset jack x
(Optional) video input x 4
DC-in x 1

Power management

9~60 VDC input
Ignition sense with time delay shutdown
Remote power on, wake on SMS / RTC
UPS backup battery (10.8V, 4500 mAhr)

Rugged Features

IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change1, Method 509.6
Operating temperature : -30°C to 55°C (-22°F to 131°F)

Mechanical Spec

VESA 75 / 100
Dimension (W x H x D) : 325 x 262 x 67.3 (mm)
Weight : 4.6kg

Software

DashON
