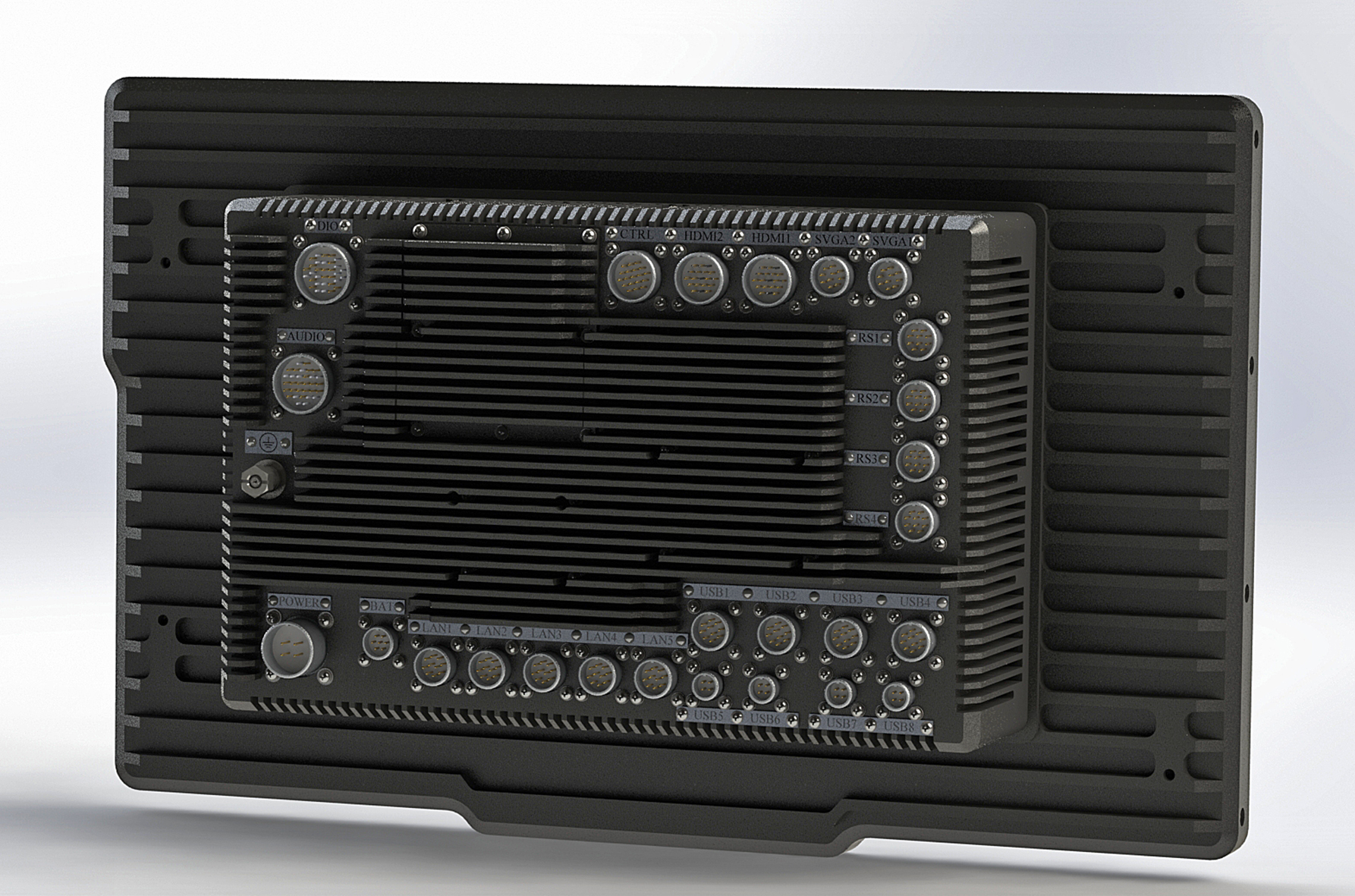

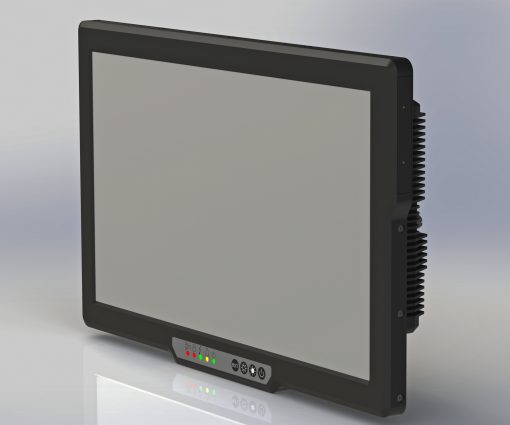

DCP17 – 17,3″ Rugged Panel PC
DCP17-series is a ruggedized 17.3″ fanless panel computers built on Intel® Core™ i7 processors of 4th to 7th Generations. All sides IP66 guarantees full functionality at operating temperatures from -40C to +70C. High bright FHD LCD screen with resistive or capacitive touch screen provides stable operation and clear readability under any weather conditions. DCP computers can be assembled or reconfigured according to customer specification within the whole life time.
Processor | Intel® Core™ i7-5650U 2× 2.20GHz, Intel® Celeron® 3955U 2x 2.00 GHz, Intel® Core™ i3-6100U 2х 2.30 GHz, Intel® Core™ i5-6300U 2х 2.40 GHz |
---|---|
Memory | 2GB DDR4, 4GB DDR4, 8GB DDR4 |
Video | Intel HD Graphics |
Storage | 128GB SSD, 256GB SSD, 512GB SSD, 1TB SSD |
Touch screen | Resistive, Capacitive |
Display size | 17.3” – 1920×1080 |
Brightness | 400cd/m2 |
USB2.0 | 1, 2, 3, 4 |
USB3.0 | 1, 2, 3, 4 |
HDMI | 1, 2 |
RS232/422/485 | 1, 2, 3, 4 |
LAN 10/100/1000 | 1, 2, 3, 4, 5 |
Interfaces | Microphone/audio (7+1) – x2 |
Size | 424x267x105mm |
Power | 12-36VDC 200W external |
Operating temperature | -40C +70C |
Humidity/Rain/Dust | 98% at 35C, 60-107KPa |
Vibration/Shock | Vibration – 5g at 5-500Hz |
